PALMS 10D TRAILER

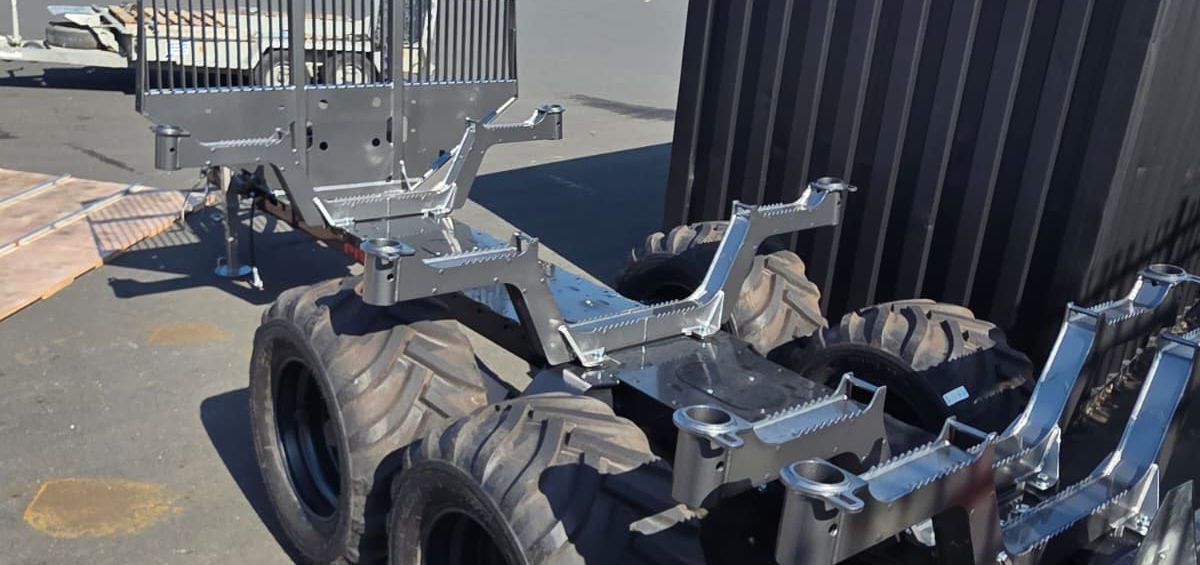

PALMS 10D Forestry Trailer — Best-Selling Double-Beam, 10-Ton
The PALMS 10D is a best-selling forestry trailer for good reason: a double-beam frame for strength and rigidity, and a 10-ton nominal load capacity that hits the sweet spot for farm forestry, private woodlots, and contractor support. As a proven platform in the PALMS lineup, the 10D delivers stable handling and confident geometry under crane work—helping operators load faster, with less fuss, across mixed log lengths and variable terrain.
It pairs with most PALMS cranes and accessories, allowing you to tailor reach, lift, bunks and load-secure solutions to your workflow. Choose the 10D when you need more capacity and stiffness than compact trailers offer, without stepping into an overly heavy rig. Use it to extract short- to medium-wood, stage timber for biomass/biofuel or animal bedding, and support arborist or storm-cleanup operations efficiently.
As the preferred NZ & AU dealer, ALFA Equipment will match the 10D to your tractor and terrain, advise on a compliant setup, and back you with demos, finance, parts, and nationwide after-sales support—so your trailer arrives ready to work and stays productive.
- Customised set up
- Generous cargo space
- Heavy duty construction
- Wide compatibility
- Advanced stability
- Exceptional load capacity- Loading area cross section: 2,4 m2
- Loading area length: 3975 mm
- Frame extension length: 0.85 m
- Gross weight, kg: 13000 kg
- Curb weight (without options), kg: 1765 kg
- Total length, mm: 6200 mm
- Width with standard wheels: 2165
- Standard wheel size: 400/60-15.5
- Frame: 2x200×100×8
- Max crane size by lifting torque: 85 kNm
- Drawbar control cylinders standard/(optional): 2 pcs
- Frame type: Double beam
